Turning your Barney Circle garage into a bedroom (And how to keep it from flooding)
Converting your Barney Circle garage into a bedroom sounds like the perfect solution for extra space in your Capitol Hill home. But before you start knocking down walls you need to understand one critical fact: DC’s heavy rainfall and aging infrastructure create unique water risks that can turn your dream project into a nightmare. This guide shows you exactly how to prevent flooding while meeting DC building requirements. DC Department of Buildings.
Why Barney Circle garage conversions face unique water risks
Barney Circle sits in a low-lying area near the Anacostia River where the water table stays consistently high. During heavy storms the combined sewer system in this part of DC often backs up causing street flooding that can seep into below-grade structures. Many homes here built before 1950 have shallow foundations with no vapor barriers creating perfect conditions for moisture intrusion. DC Department of Buildings.
The soil composition in this area contains heavy clay that expands when wet putting pressure on foundation walls. When you convert a garage to living space you seal it off from natural ventilation creating a moisture trap that can lead to mold growth within 24-48 hours of water exposure. Fast Water Extraction for Commercial Offices in Downtown DC.
Diagram showing typical Barney Circle garage layout with water table levels and drainage paths
Structural solutions: Foundation and floor waterproofing

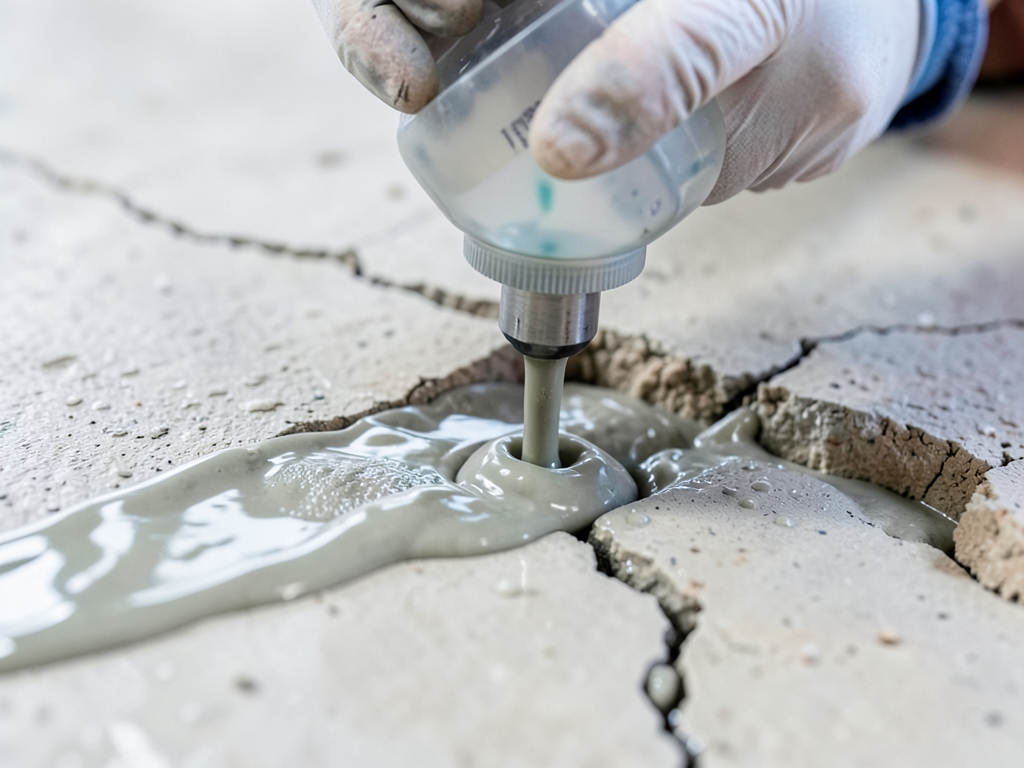

Before finishing your garage walls you need to address the foundation itself. Start by inspecting for existing cracks using a moisture meter at multiple depths. Small hairline cracks can be injected with polyurethane resin that expands to fill gaps and creates a flexible waterproof seal. Emergency Water Damage Cleanup for Capitol Hill Rowhouses.
For the floor apply a crystalline waterproofing coating that penetrates concrete and forms crystals that block water pathways. This differs from surface sealers because it becomes part of the concrete structure. Follow DC Water and Sewer Authority guidelines which require a Class I vapor retarder with perm rating under 0.10 for habitable spaces. DC Department of Buildings.
Install a sub-slab drainage mat with integrated drainage channels that directs water to a perimeter drain system. This prevents hydrostatic pressure from building against foundation walls which is especially important in Barney Circle where the water table can rise within 6 feet of the surface during wet seasons. Water Damage Restoration Bethesda.
Exterior drainage: Managing DC’s heavy rainfall
DC receives approximately 43 inches of rain annually with most falling during summer thunderstorms. Your garage conversion needs a comprehensive exterior drainage system to handle this volume. Start by ensuring the ground slopes away from the structure at a minimum 5% grade for the first 10 feet.
Install a French drain system around the garage perimeter using 4-inch perforated pipe surrounded by clean gravel. Connect this to a sump pit with a 1/3 HP submersible pump capable of moving 2400 gallons per hour. Add a battery backup system since power outages often accompany heavy storms.
Gutter downspouts should discharge at least 10 feet from the foundation using underground drain lines. In Barney Circle’s older neighborhoods many homes share drainage easements so coordinate with neighbors before modifying existing systems to avoid creating new flooding problems.
Photo of French drain installation with gravel and perforated pipe around a DC garage foundation
Moisture control and insulation for living spaces
Converting a garage requires different moisture protection than a typical basement. The concrete slab absorbs moisture from the ground and releases it into the air creating humidity levels that can exceed 70% without proper vapor barriers. Install 6-mil polyethylene sheeting beneath 2-inch rigid foam insulation to create a thermal break and moisture barrier.
Wall assemblies need both a vapor barrier and an air barrier. Use 15-pound felt paper or a housewrap product on exterior walls before installing drywall. Inside walls use mold-resistant gypsum board with fiberglass insulation that maintains an R-value of at least 13 for DC’s climate zone.
Install a dedicated bathroom exhaust fan vented to the exterior and consider a whole-house dehumidifier for the converted space. These systems remove the 2-3 gallons of moisture that a family of four generates daily through breathing cooking and showering.
DC building codes and permits for garage conversions
The DC Department of Buildings requires specific permits for garage-to-living-space conversions. You need both a building permit and electrical permit. The conversion must meet habitable space requirements including minimum ceiling height of 7 feet emergency egress window and proper ventilation.
DC Code Section 12-301 mandates that all below-grade habitable spaces have a working sump pump system with battery backup. The sump pit must be at least 18 inches in diameter and 24 inches deep. Discharge pipes cannot connect to the sanitary sewer system per DC Water regulations.
Foundation waterproofing must comply with International Building Code Section 1805 which requires dampproofing or waterproofing depending on the water table depth. In Barney Circle’s flood-prone areas waterproofing is mandatory for any space intended as living quarters.
When to call a water damage restoration professional
Even with perfect planning water can still find its way into your converted garage. Call a professional immediately if you notice musty odors visible mold growth or water stains appearing on walls or ceilings. These signs indicate moisture problems that can escalate quickly in DC’s humid climate. Immediate Burst Pipe Response for Arlington VA Apartment Managers.
Professional water damage restoration technicians use moisture meters and thermal imaging cameras to detect hidden water behind walls. They follow IICRC S500 standards for water damage restoration which includes proper drying protocols to prevent mold growth within the critical 48-72 hour window.
Don’t wait for visible damage. Schedule a pre-conversion inspection to identify potential water entry points before you finish your walls. This preventive step costs far less than emergency remediation after a flood event. Specialist Mold Remediation for Historic Georgetown Properties.
- Foundation Assessment
Inspect for cracks using moisture meter at multiple depths. Inject hairline cracks with polyurethane resin. Apply crystalline waterproofing to foundation walls.
- Floor Preparation
Install 6-mil polyethylene vapor barrier beneath rigid foam insulation. Apply crystalline waterproofing coating to concrete slab.
- Exterior Drainage
Grade soil away from structure at 5% slope. Install French drain with 4-inch perforated pipe and sump pump system.
- Moisture Barriers
Install Class I vapor retarder with perm rating under 0.10. Use mold-resistant gypsum board and proper insulation.
- Permit Compliance
Obtain building and electrical permits. Install egress window and meet DC habitable space requirements.
Cost comparison: DIY vs professional waterproofing
| Component | DIY Cost Range | Professional Cost Range | Key Difference |
|---|---|---|---|
| Foundation crack repair | $200-$500 | $800-$1,500 | Professional injection with warranty |
| Floor waterproofing system | $300-$700 | $1,200-$2,500 | Professional installation and materials |
| French drain installation | $500-$1,200 | $2,500-$5,000 | Proper grading and connections |
| Sump pump system | $300-$600 | $1,500-$3,000 | Battery backup and professional wiring |
| Permit fees and inspections | $0 | $500-$1,000 | Ensures code compliance |
10-point water prevention inspection checklist
- Check foundation walls for existing cracks or moisture stains
- Test existing sump pump operation and battery backup
- Verify proper grading slopes away from structure
- Inspect gutter downspouts and extensions
- Measure current humidity levels in garage space
- Check for signs of efflorescence on concrete surfaces
- Verify exterior drainage systems are clear of debris
- Inspect window wells for proper drainage
- Check for proper ventilation in existing space
- Test moisture levels in concrete slab before finishing
Local case study: Solving flooding in a Capitol Hill garage conversion
A Capitol Hill homeowner converted their 1920s garage without proper waterproofing. Six months later heavy rains caused 2 inches of water to flood the new bedroom. The water entered through a foundation crack that had been painted over during renovation.
Reliance Water Damage Restoration responded within 90 minutes. Our technicians used thermal imaging to locate the water source and found the crack extended 8 feet along the foundation wall. We injected polyurethane resin to seal the crack installed a French drain system and set up commercial dehumidifiers to prevent mold growth.
The total restoration cost $8,200 but the homeowner avoided the $25,000+ cost of mold remediation and structural repairs that would have occurred if the water had sat for another 48 hours. More importantly we helped them redesign the space with proper waterproofing before rebuilding.
Frequently Asked Questions
Do I really need a sump pump for my garage conversion?
Yes. DC building codes require sump pumps for any below-grade habitable space. Barney Circle’s high water table makes them essential for preventing flooding during heavy rains.
How long does waterproofing take before I can start finishing work?
Most waterproofing systems need 24-48 hours to cure before finishing. Concrete moisture tests should read below 4.5% before installing flooring or drywall.
Can I use the existing garage floor for my new bedroom?
You can use the existing slab but it needs proper moisture barriers and waterproofing first. The concrete must test dry and have a vapor barrier installed before any flooring goes down.
What happens if I skip waterproofing to save money?
You risk mold growth structural damage and health issues. Water damage restoration costs average $3,000-$8,000 for minor flooding and can exceed $25,000 for extensive mold remediation.
How do I know if my garage is in a flood zone?
Check the FEMA flood maps for DC or consult with a local water damage professional. Many areas near the Anacostia River including parts of Barney Circle have moderate flood risk.
Converting your Barney Circle garage into a bedroom requires careful planning and proper waterproofing to protect your investment. The DC climate and aging infrastructure create unique challenges that generic renovation advice doesn’t address. By following these guidelines and working with qualified professionals you can create a comfortable living space that stays dry for years to come.
